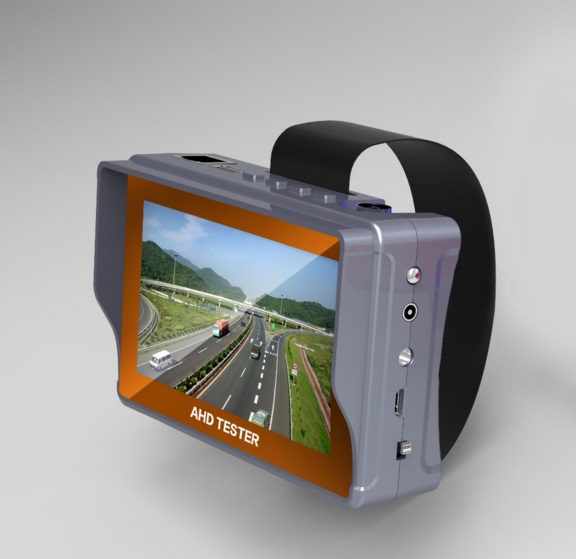

Tester AHD Mod. C-IV7A
 Feature

  • 4.3'' CCTV video tester AHD
  • 12V DC, 1A power output for camera.
  • Test for UTP cable.
   Specification


MODEL

C-IV7A

Video Test

Video System

NTSC/PAL Automatically recognize

Video Level

1VPP

Display Screen

4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color

Screen Adjustment

Video Display brightness, contrast, color saturation adjustable, LCD backlight brightness adjustable

Video input / output

1 channel BNC Video IN

HD AHD Test

SD Signal format

NTSC, PAL

HD Video signal

HD AHD

Resolution

D1, 720p, 960p, 1080p

Signal level

1 Vpp

12V Power Output

Power Output

Temporary power output 12V 1A DV



USBX1 5V1A output

Audio Test

Audio Test

Input audio

Power supply

Battery-powered

Built-in 3.7V li-polymer battery, Capacity 2600mAh

Charge

Charge time 3-4 hours Battery power time 8 hours

Power saving features

Low power consumption, automatic power off, Real-time display of battery level

System settings

Language settings

Chinese, English and Espa├▒ol

Auto power off

Disable / 5 - 60 minutes

CABLE TEST

Cable test

Test any two or more wire cable Display connect sequence and remote number

LED Light

1* 35lm LED ligth

Temperature

-20degree---+70degree

Working Humidity

30%-90% Rh
