System

Operating System

Embedded LINUX

Main processor

Hi3531

System resources

Simultaneous multi-channel recording, playback, network operation, USB backup

Video & Audio Input

Video Input

8 channel Full 1080p AHD

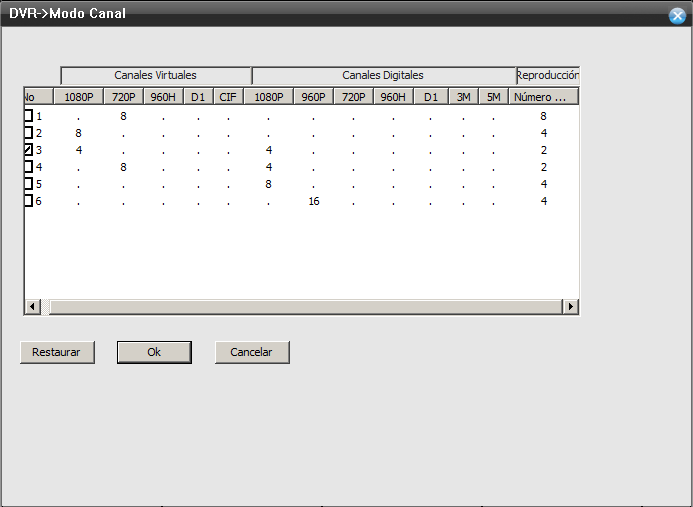

Resolution

Analog+IP camera(PAL): 8*1080P/25FPS;

8*720P/25fps+0; 8*960H/25fps;

8*720P/25fps+4*1080P/25fps;  8*960H/25fps+8*1080P/25fps; 0+8*1080P/25fps

Audio input

2channel, BNC

Video input Interface

BNC(1.0Vp-p,75Ω）

Video compression

H264

Audio compression

G.711a

Bidirectional talk

Support

Display

Interface

1 HDMI, 1 VGA

User interface

support 16-bit true color graphical menu interface and mouse operation

Resolution

1024*768;1280*720;1280*1024;1440*900;1920*1080

Display Split

1/4/8/16

OSD

Channel title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

Record Mode

Manual, Auto(Regular(Continuous), MD, Alarm), Off

Record Interval

1~120min (default: 60 min), Pre-record: 1~30sec

Alarm

Trigger Events

Recording，Alarm，Video Push，Email, Buzzer

Video Detection

Motion Detect, Video Blind, Video Loss

Abnormal

HDD loss, Low HDD capacity, Net disconnection, IP conflict, HDD error

Alarm input

4 channel (Optional)

Relay output

1 channel (Optional)

Playback & Backup

Sync Playback

4*1080P/25fps; 2*1080P/25; 4*1080P/25fps(PAL)

Search Mode

Time/Date, Alarm, MD & Exact search (accurate to second)

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera,  Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

Backup Mode

USB Device / Network

Network

Ethernet

RJ-45 port, 10/100M

Network Functions

HTTP, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS, FTP, P2P.

Mobile Phone

CamViews  (IPhone, IPad, Android)

Max.User Access

10 users

Storage

Internal HDD

2 SATA ports, up to 8TB

Auxiliary Interface

USB Interface

2 ports, USB2.0

RS485

1 port, For PTZ control

General

Power Supply

AHD：DC12V/4A

Power Consumption

20W(without HDD)

Working Environment

-10 ~+55°C / 10~90%RH / 86~106kpa

Dimension(W*D*H)

1U，335*248*50 (mm)

Weight

1.5-2.0kg(without HDD)
