Especificaciones:

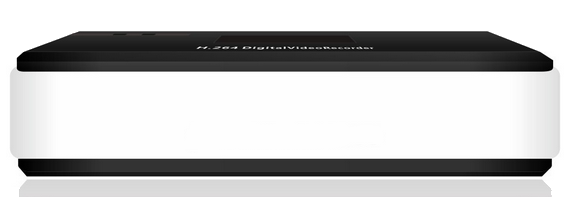

• Modelo	NVR-X04SN
  System
  Main processor	High performance embedded microprocessor
  Operating system	Embedded LINUX OS
  Video spec.
  Video compression format	H.264
  Display Image Resolution	720P@30fps 960P@30fps 1080P@30fps
  Playback Image Resolution	720P@30fps 960P@30fps 1080P@30fps
  Motion Detection	can setup 192pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable)
  Privacy Masking	Depends on ipc
  Audio spec.
  Audio compression format	adpcm g711
  Two-way audio	1ch
  Recording Mode
  Recording Mode	Manual Recording,Motion Detection Recording,Time Recording,Alarm Recording
  Recording storage	HDD,Network
  Frame rate	30 fps NTSC,25fps PAL
  Recording Playback	Max suport 4ch 960P
  Backup Mode	Support HDD,USB Flash Disk store & backup
  Video
  Network Video Input	4ch
  Video output	1ch VGA and 1ch HDMI
  Other
  Network	1x10/100Mbps,RJ45 port
  RS485	Standard 485 port,support half-duplex, green terminal port
  USB	2 USB 2.0 ports
  HDD	support 1 3TB SATA HDD inside
  Power	DC +12V /4A
  Power consumption	16W-18W(not include HDD and PoE)
  Operation temperature	0 degree-+55 degree
  Operation humidity	10%-90%
  Demension	252*213*42mm(0.8u hight)
  Weight	0.9-1.5KG(not include HDD)



Funciones Basicas:

•   Sistema Operativo Linux RTOS, Buena transmicion de datos en la red, alta estabilidad

•   Interfaz GUI, seleccion multiligue

•   Con Deteccion de movimientos

•   Grabacion Manual, Grabacion programada

• Multi-Plex: Preview, Playback, backup, transmicion de red simultanea.



• Incluye lo Siguiente:
  • Facil de Instalar
  • Incluye Mouse
  • Incluye fuente de Poder
  • Incluye Manual de Uso en Ingles.

Nota: Si desea Factura agregar el 16% de IVA.

• No Incluye Envio.
• Aceptamos Depositos a Cuenta de Banco,  Tarjetas de Credito y Debito.
